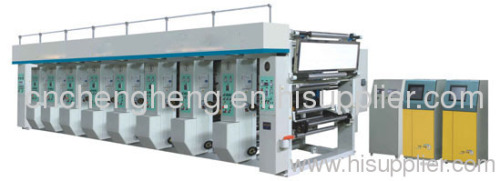

Computer High Speed multi-color Gravure Printing Machine

Place of Origin:

Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CHCY-C

Production Capacity: 200sets

Processing: Packing Machine

Type: General

Packaging: Plastic

Means of Transport: Ocean

Delivery Date: 25-30work days

Automatic Grade: Automatic

Usage: Others

Brand Name: Chengheng

The machine shape, performance and feature of the technical parameters can be changed at any time without prior notice.

Computer High Speed multi-color Gravure Printing Machine

Purpose

This machine, widely used in various high-class printing products, is suitable for the one-time continuous multi-color printing of roll-like film materials of excellent printing properties including BOPP, PET, PVC, PE, aluminum foil, and web with widely used in various high class printing products.

Main Technical Parameters

Model	CHCY -8/600C	CHCY -8/800C	CHCY -8/1000C
Printing width	600mm	800mm	1000mm
Max. width of materials	650mm	850mm	1050mm
Max. printing speed	120m/min	120m/min	120m/min
Max. machine speed	140 m/min	140 m/min	140 m/min
Max. diameters of winding and unwinding	ф600mm	ф600mm	ф600mm
Roll diameter	ф76mm	ф76mm	ф76mm
Printing roll diameter	ф120ф300mm	ф120ф300mm	ф120ф300mm
Registering precision	±0.1mm	±0.1mm	±0.1mm
Tension control range	325kg/FullWidth	325kg/FullWidth	325kg/FullWidth
Oven heating power	72Kw	96Kw	120Kw
Total power	109Kw	136Kw	160.5Kw
Machine weight	18000kg	20000kg	22000kg
Overall dimension	L13300W3200H2500mm	L13300W3400H2500mm	L13300W3600H2500mm

The machine shape, performance and feature of the technical parameters can be changed at any time without prior notice. Without the written approval of Fang Bang company, no materials shall be reproduced or disseminated.

Performance & Feature

1. Every control module of the automatic color register system is equipped with a microprocessor which can correct the deviation of color register quickly and accurately.

2. The main motor is equipped with frequency converter for speed regulation

3.Unwinding tension adopts the automatic tension controller and the magnetic powder brake.

4. Rewinding employs the torque motor and the double-station automatic turret.

5. Closed oven, independent heating hot air blowing system and automatic constant temperature system.

6. Pneumatic pressing and traction system and pneumatic scraping blade system

7. Diaphragm-type pneumatic ink auto circulating system

8. Inflatable air shaft for unwinding/rewinding material loading

9. Printing linear speed and meter counting display

10. Shaft less printing cylinder loading device

11. The still frame can be selected.
